Design standard of typical details for lined floating head. Use this standard for study purposes only.

General Notes:

  1. Lining thickness and material as specified on exchanger drawing
  2. For all stainless steel welds see drawing BN-DS-A7, sheet 1 & 2
  3. To be same material as lining, unless specified on exchanger drawing

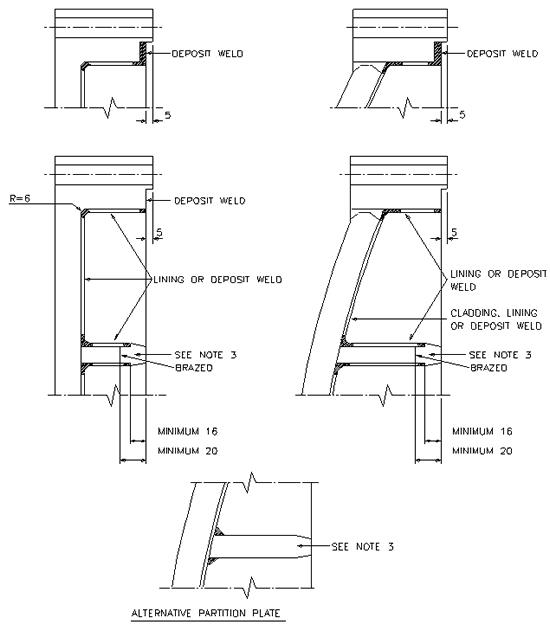

The next figure shows a typical design:
