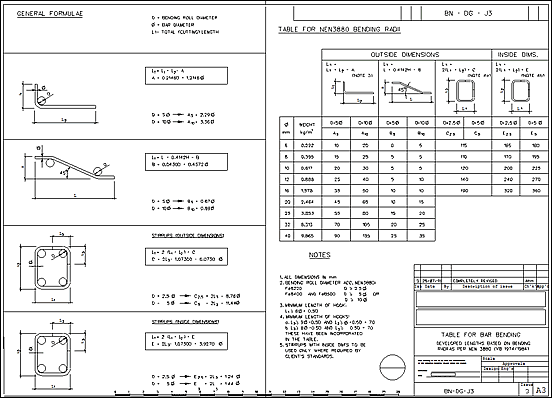

NOTES
1. All demensions in mm
2. Bending roll diameter ACC NEN3880:
| FeB220 | larger or equal 2.5 Diameter |
| FeB400 and FeB500 | larger or equal 5 Diameter or |
| larger or equal 10 Diameter |
3 Minimum length of hook:
L1 larger or equal 6 Diameter +0.5D
4. Minimum length of hooks:
a. L3 larger or equal 9 Diameter+0.5D and L3 larger or equal Diameter + 0.5D+70
b. L3 larger or equal 8 Diameter+0.5D and L3 larger or equal Diameter + 0.5D+70
These have been incorporated in the table
5. Stirrups with inside DIM's to be used only where required by clients standards.
