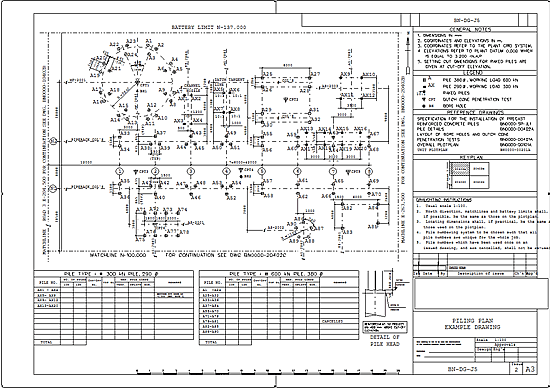

GENERAL NOTES
1. Dimensions in mm
2. Coordinates and elevations in m.
3 Coordinates refer to the plant grid system.
4. Elevations refer to plant datum 0.000 which is equal to 3.200 +N.A.P.
5. Setting out dimenstions for raked piles are given at cut-off elevation.
LEGEND
| A | Pile 380 diameter working load 600 kN |
| AX | Pile 290 diameter, working load 300 kN |
| Raked piles | |
| CPT | Dutch cone penetration test |
| BH | Bore Hole |
REFERENCES DRAWINGS
Specification for the installation of precast
| Reinforced concret piles | BN0000-SO-JL1 |
| Pile Details | BN0000-00402A |
Layout of bore holes and dutch cone
| Penetration tests | BN0000-00401A |
| Overall Plotplan | BN0000-00101A |
| Unit plotplan | BN0000-00201A |
DRAUGHTING INSTRUCTIONS
1. Usual scale 1:1000
2. North direction, matchlines and battery limits shall, if possible, be the same as those on the plotplan.
3. Locating dimensions shall, if practical, be the same a those used on the plotplan
4. Pile numbering system to be chosen such that all pile numbers are unique for the whole job.
5. Pile numbers which have been used once on an issued drawing, and are cancelled, shall not be re-used
