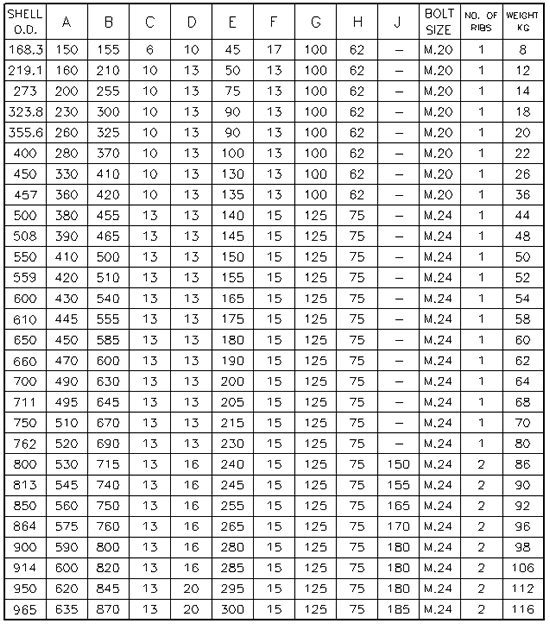

Design standard of Saddles for heat exchangers and vessels. Use this standard for study purposes only.
General Notes:
- For material see exchanger drawing
- Bolthole diameter to be bolt diameter +6 mm
- For saddle locations see exchanger drawing
- Mentioned weights are for two bottom saddles
- All joint shall be 6 mm continuous fillet welded both sides

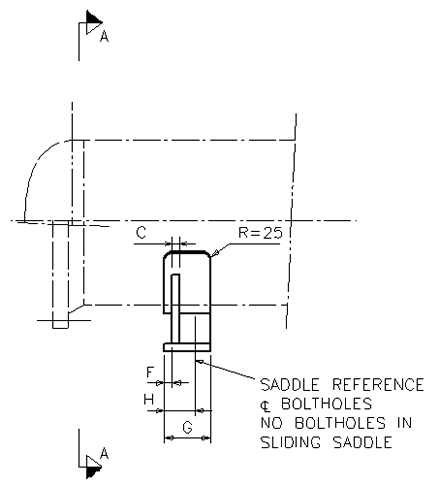

The next figure shows a typical design:
