Design standard of sliding plate for saddle of smaller horizontal apparatus. Use this standard for study purposes only.
Shell diam. 150mm OD up/incl. 950mm OD
Notes:
- Material of sliding plate to be the same as saddle base plate material
- All welds to be cont. fillet welds

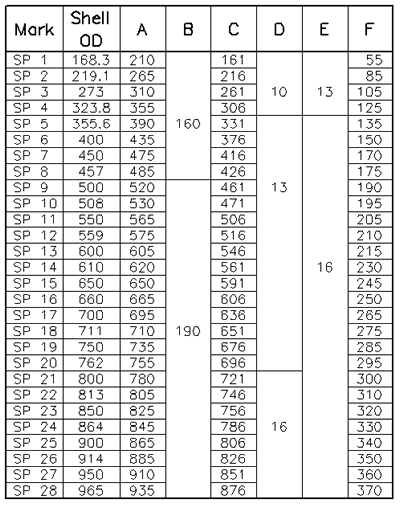

The next figure shows a typical design:
