BN-DS-C22 Y-type suction strainers

Details

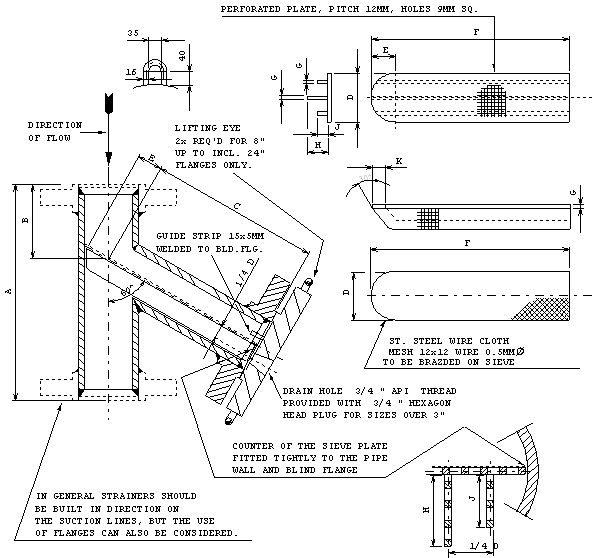

This design standard gives dimensions for the design of Y-type suction strainers. Final dimensions and design to be checked and approved by a qualified engineer.





NOM. SCHEDULE A B C D E F G H J K
PIPE DIA No
INCHES   in mm. in mm. in mm. in mm. in mm. in mm. in mm. in mm. in mm. in mm.
2" 40 290 110 210 51 30 240 3 24
3" 40 380 140 270 76 44 314 3 37
4" 40 420 150 300 99 58 358 3 48
6" 40 520 180 420 151.5 88 508 3   65 12
8" 40 610 210 500 200 116 616 3   86 15
10" 40 740 260 560 252 146 706 3   110 22
12" 30 820 280 670 304 177 847 3   130 24
14" 30 880 290 730 333 193 923 5   144 26
16" 30 980 330 820 384 222 1042 5   166 30
18" 30 1030 340 940 430 250 1190 5   186 34
20" 20 1120 370 1060 485 281 1341 5   208 37
24" 20 1320 420 1180 585 340 1520 5   250 45
