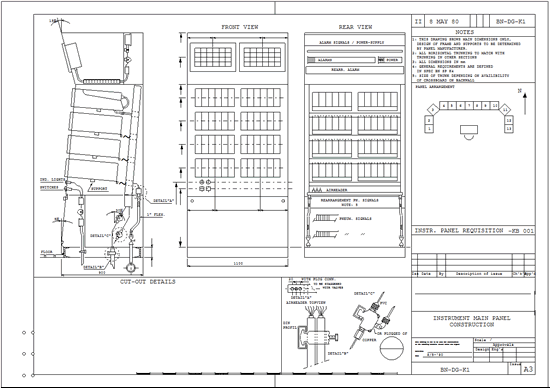

BN-DG-K01 Instrument Main Panel Construction

GENERAL NOTES

1. This drawing shows main dimensions only, design of frame and supports to be determined by panel manufacturer.
2. All horizontal trunking to match with trunking in other sections
3. All dimensions in mm
4. General requirements are defined in spec BN SP K4
5. Size of trunk depending on availibility of crossboard on backwall
